Rugged, efficient, high-capacity units for the controlled movement of large volumes of bulk material.
Eriez mechanical feeders are simple, rugged, vibrating machines designed to handle a variety of bulk materials. The conveyors are available in single-mass and two-mass vibrating systems excited by a motor-driven eccentric shaft. Springs vary according to the type of application.
The remarkable compact, straight-line design of these conveyors presents an extremely low profile yet allows for ease of maintenance. Minimum headroom is required for installation.
Features & Benefits:

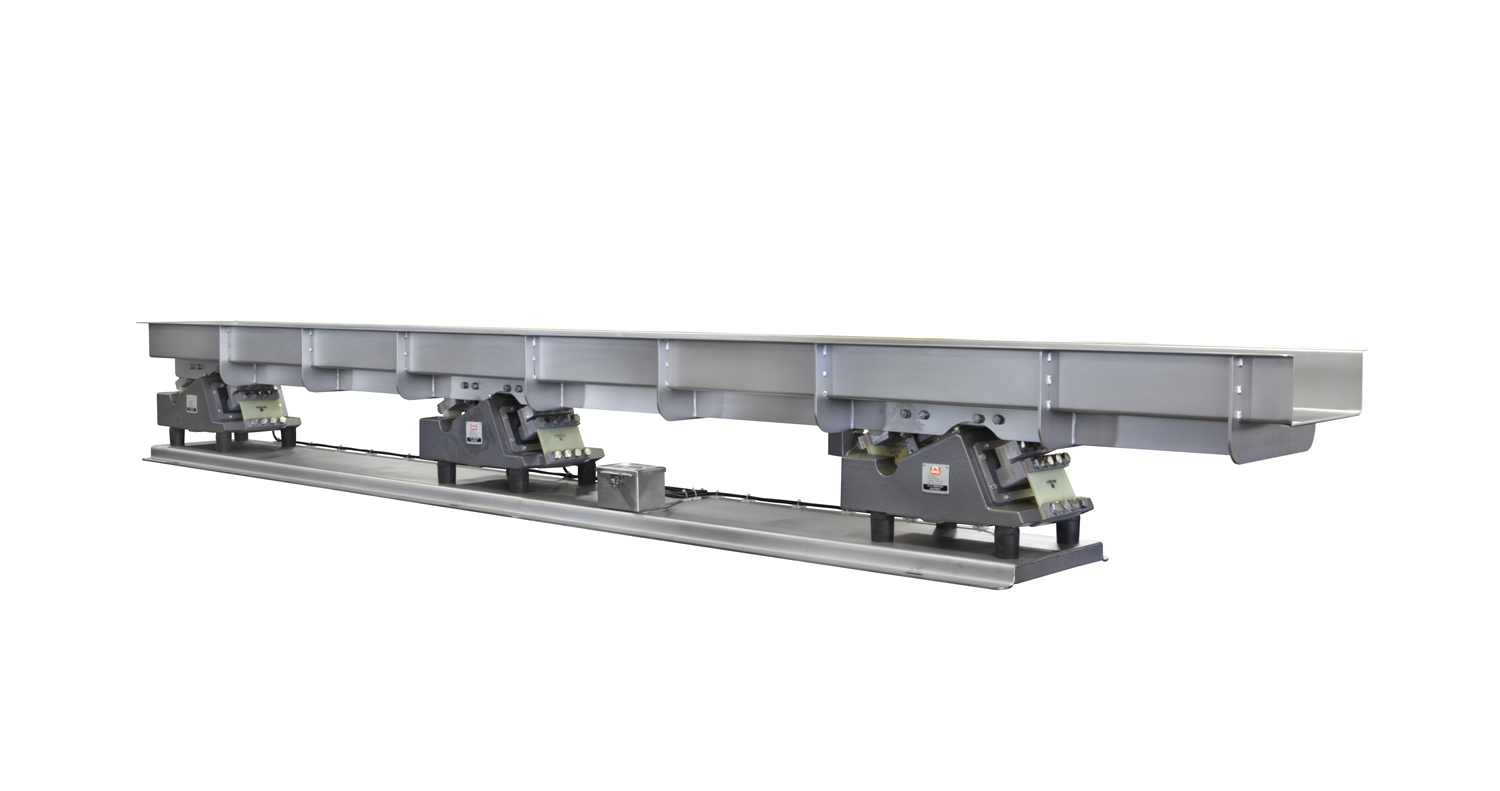

The Eriez Model TM mechanical conveyors are powerful vibrating machines designed for moving bulk materials over long distances. These units will convey large volumes of material with simple, dependable efficiency. The Model TM conveyor is a spring-coupled, two-mass vibrating system using a motor-driven eccentric weighted shaft to provide the exciting force. Corrosion-resistant fiberglass springs transmit exciting force to the trough, and trough motion can be “fine tuned” for specific applications. The low profile and compact design of the Model TM conveyor requires minimum headroom for installation.
Features:

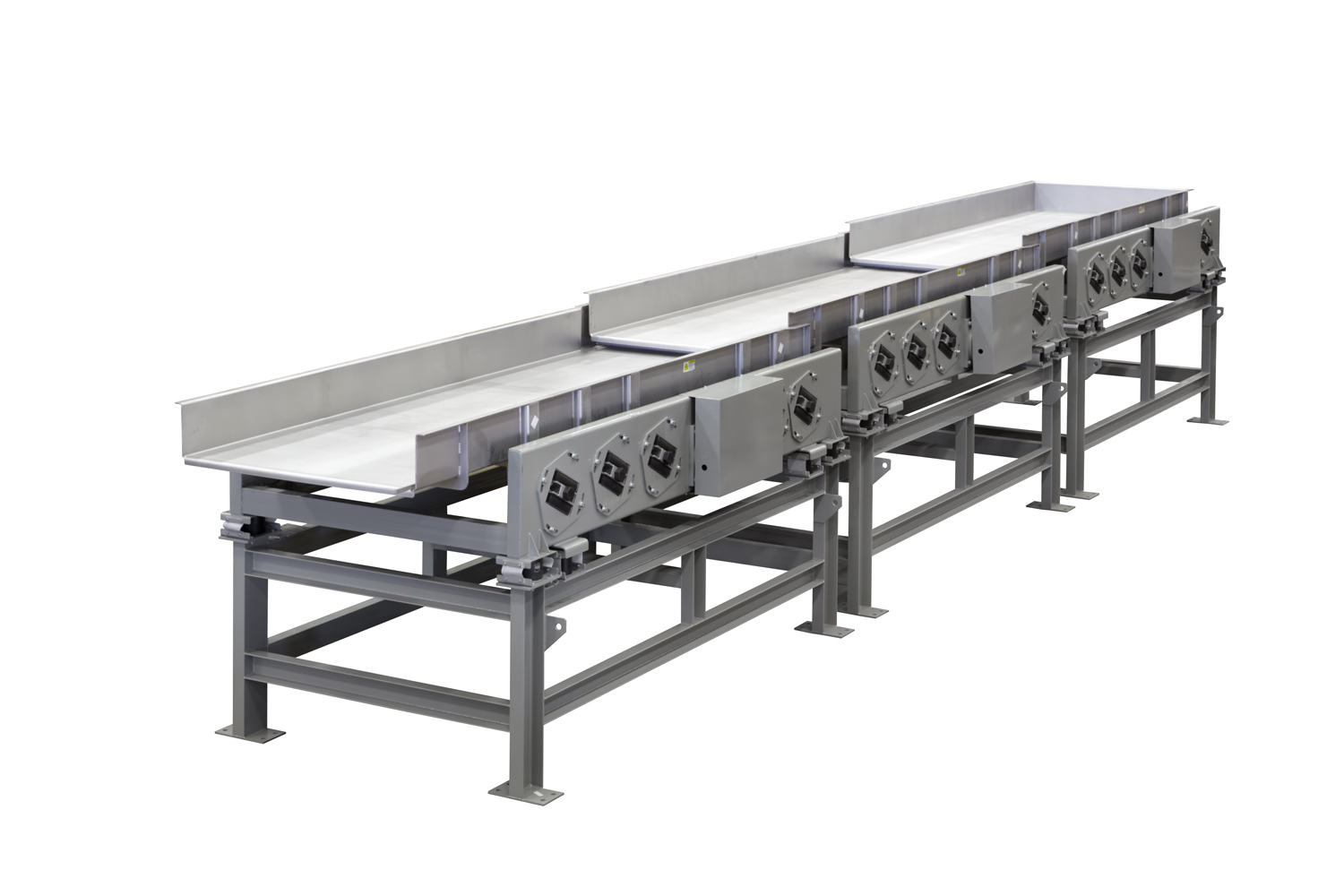

Eriez’ Model HVC mechanical conveyors are simple, rugged vibrating machines that move high volumes of bulk materials over long distances, reliably and economically.
The conveyor is a two-mass vibrating system, spring coupled, excited by a motor-driven eccentric shaft. Adjustable-angle rubber springs – each one of which can be removed and replaced in less than two minutes if required – transmit the exciting force and can “fine tune” the motion of the trough to optimize the flow rate for a specific application.
The compact, straight-line design of the Model HVC conveyor presents an extremely low profile; minimum headroom is required for installation. Power is provided by a standard three- hase, 230/460 volt TEFC 60 Hz motor.

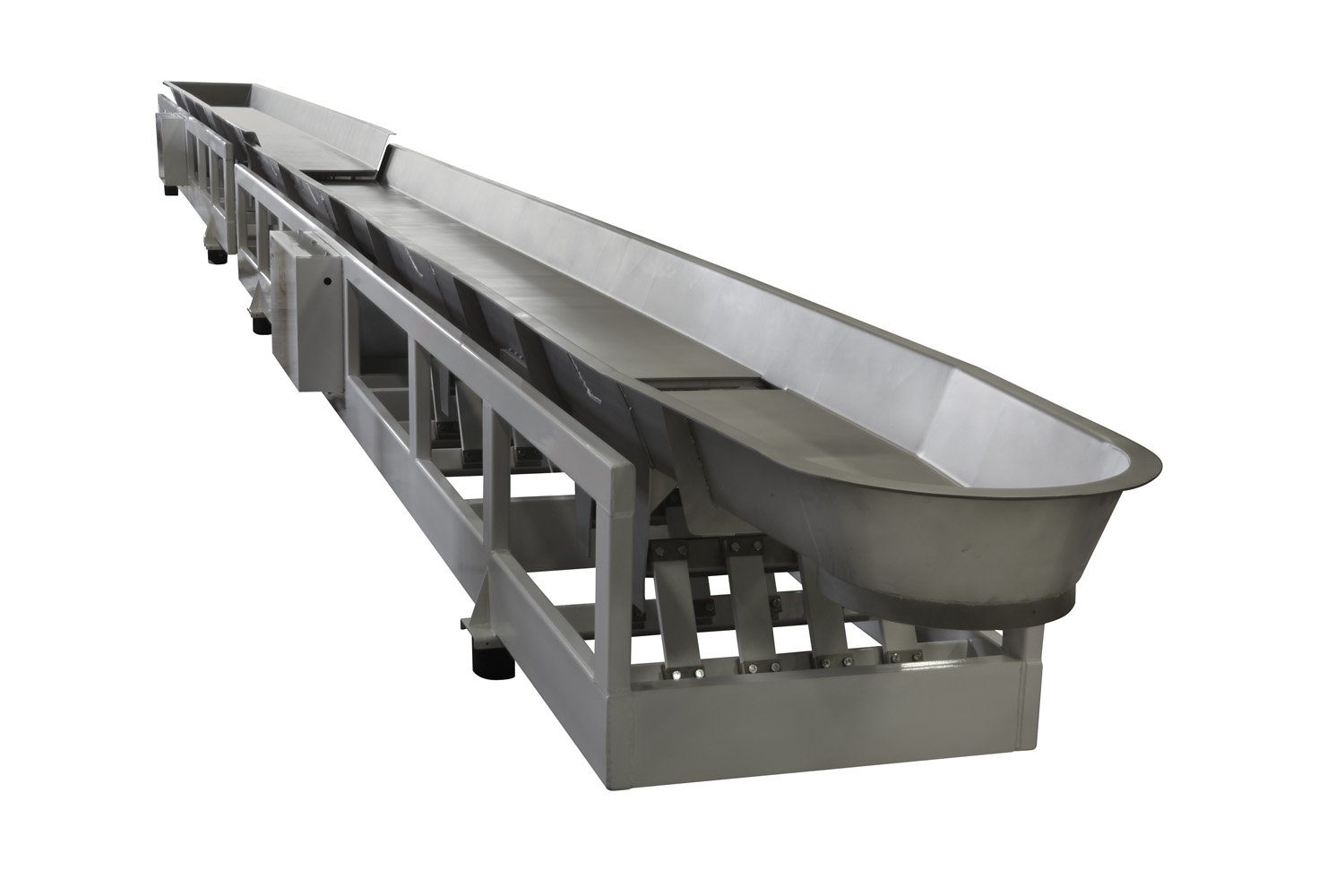

The light-duty Model SM mechanical conveyor utilizes a gentle, efficient, oscillating motion to move light loads of free-flowing materials. The conveyor is designed to provide years of dependable service to food, chemical and other industries. Simple and compact in design, it is powered by a standard foot-mounted motor, driving an eccentric shaft which excites fiberglass springs attached to the tray.
The conveyor’s framework of base assembly and conveying pan is constructed of heavy-duty steel for necessary rigidity and durability. The base is designed for solid attachment at grade level to a rigid concrete foundation or structure rather than suspension mounting.
