Light/Medium Duty Feeders
Eriez Light and Medium Duty Electromagnetic Feeders
Eriez' unique Hi-Vi magnetic drive circuit provides a simple yet powerful solution to difficult material feeding applications.
These feeders, with their totally enclosed magnetic drive, can feed practically any bulk material from micron size to bulky chunks. Solid-state controls operate the feeders with “watch–like” precision. In addition, you get all the features that for years have made Eriez Feeders the leaders in quality and dependability.
Eriez has standard models for the majority of feeding applications. Special units such as multiple drives, enclosed trays or screens can be designed for the best solution to your application. In addition, a wide variety of standard and special trays are available.

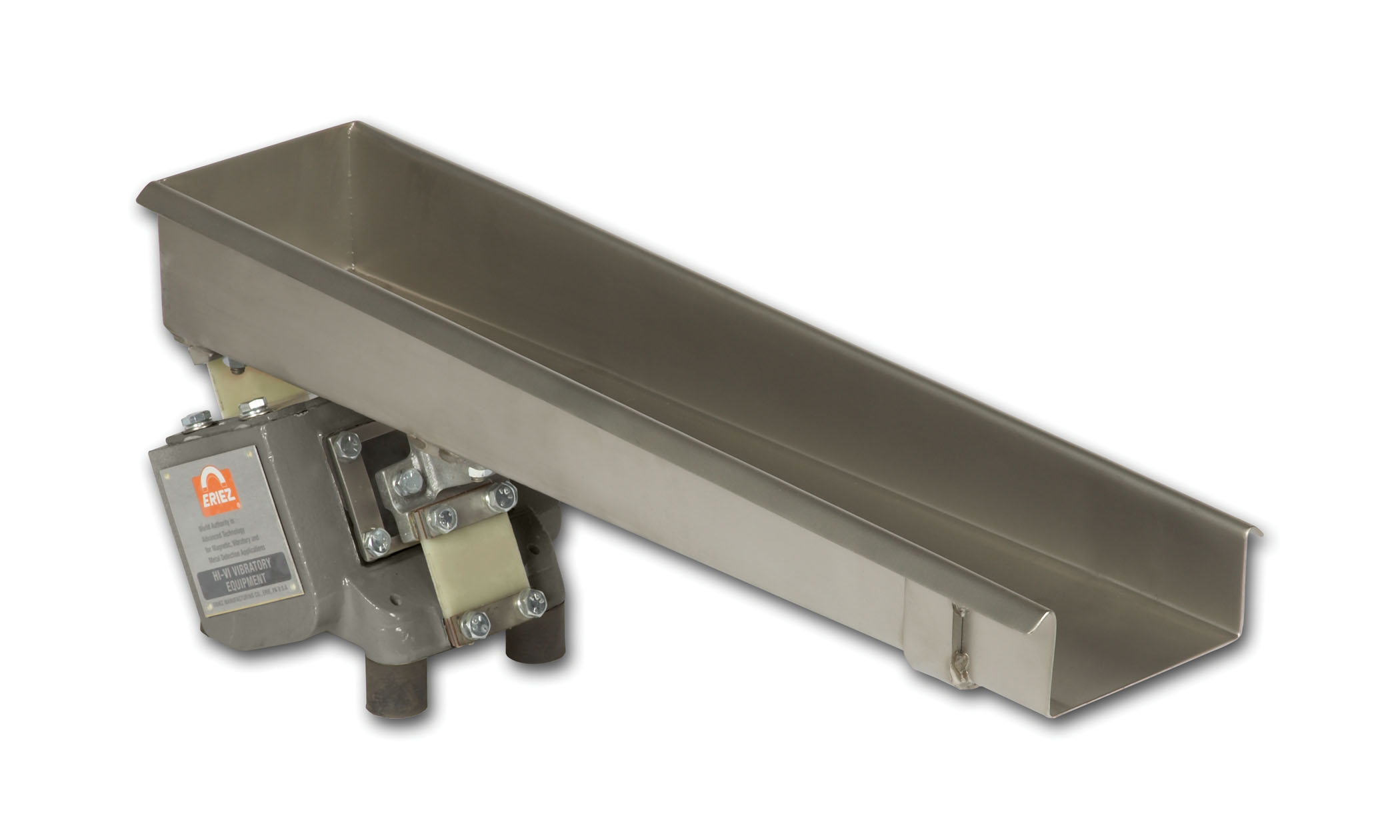

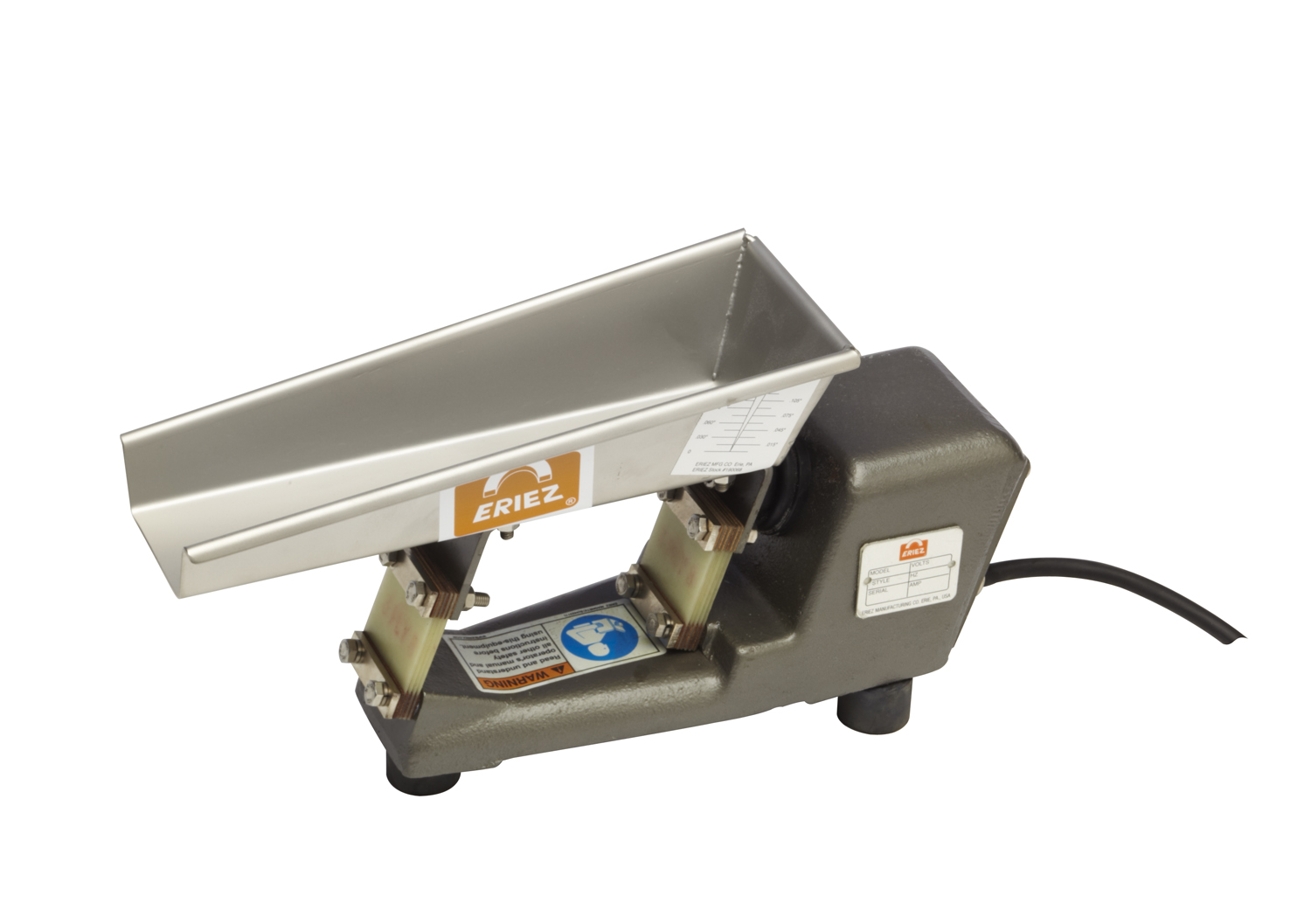

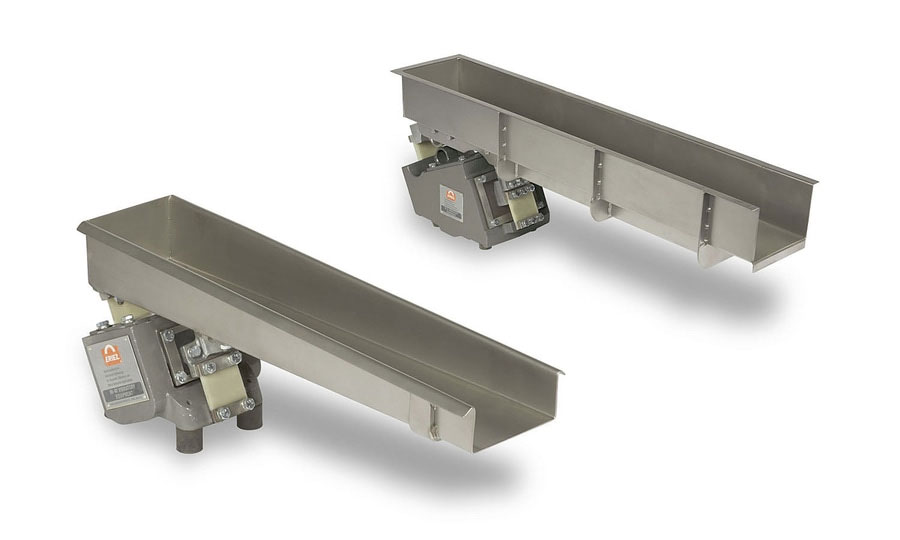

Model A Feeders
The smallest feeder in the line, this economical model will give precise feeding of the most minute amounts of materials. It is ideal for feeding a regulated amount of granular to small lump material from a hopper to a second process, in small packaging operations or laboratory use.
These feeders control material flow from a few pounds per minute to 2 tons per hour.

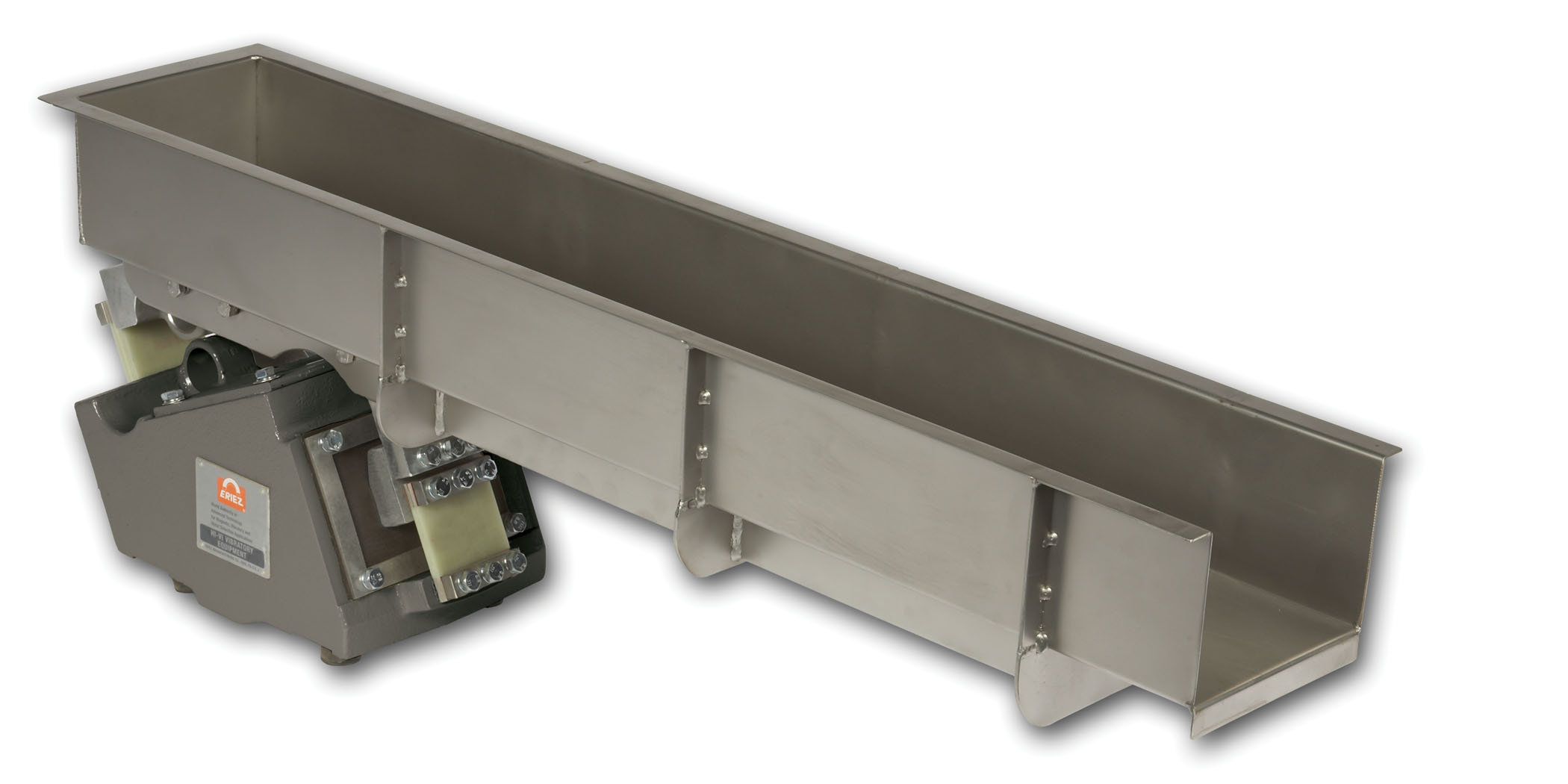

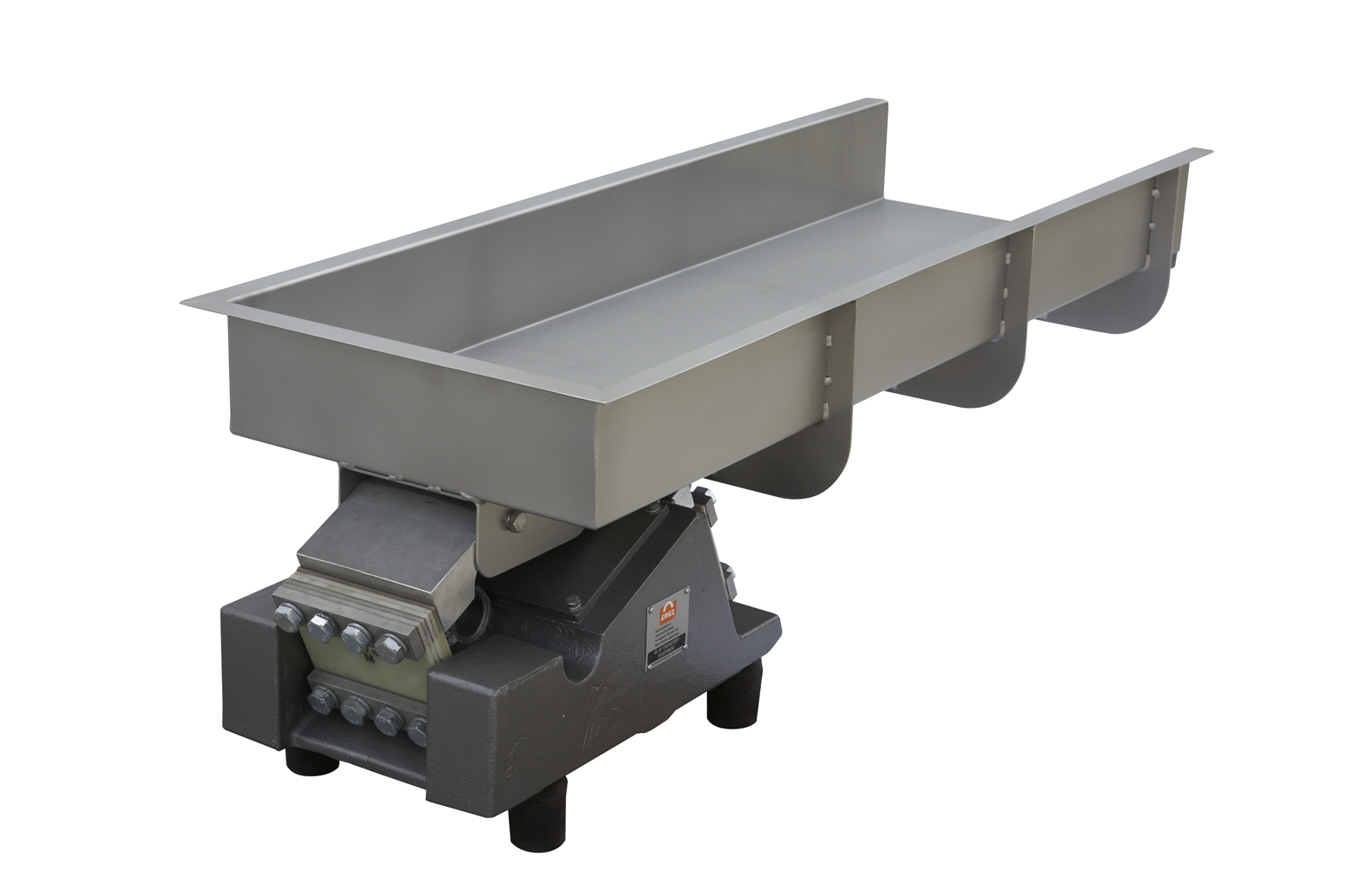

Model C Feeders
Larger than Model A Feeders, these units use the same drive that provides the best linearity in the industry. Special construction is also available for Class II, Group F and G installation.

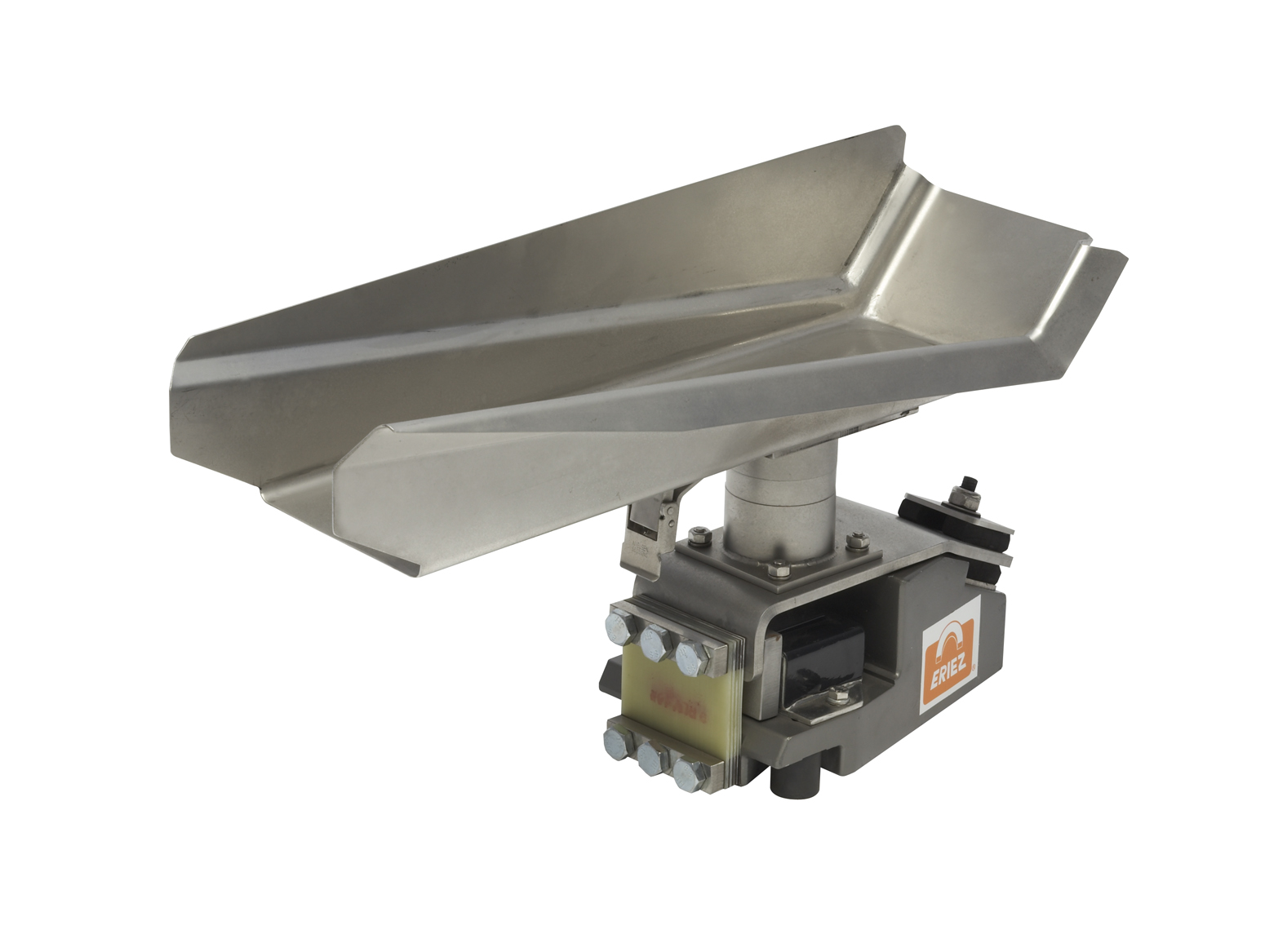

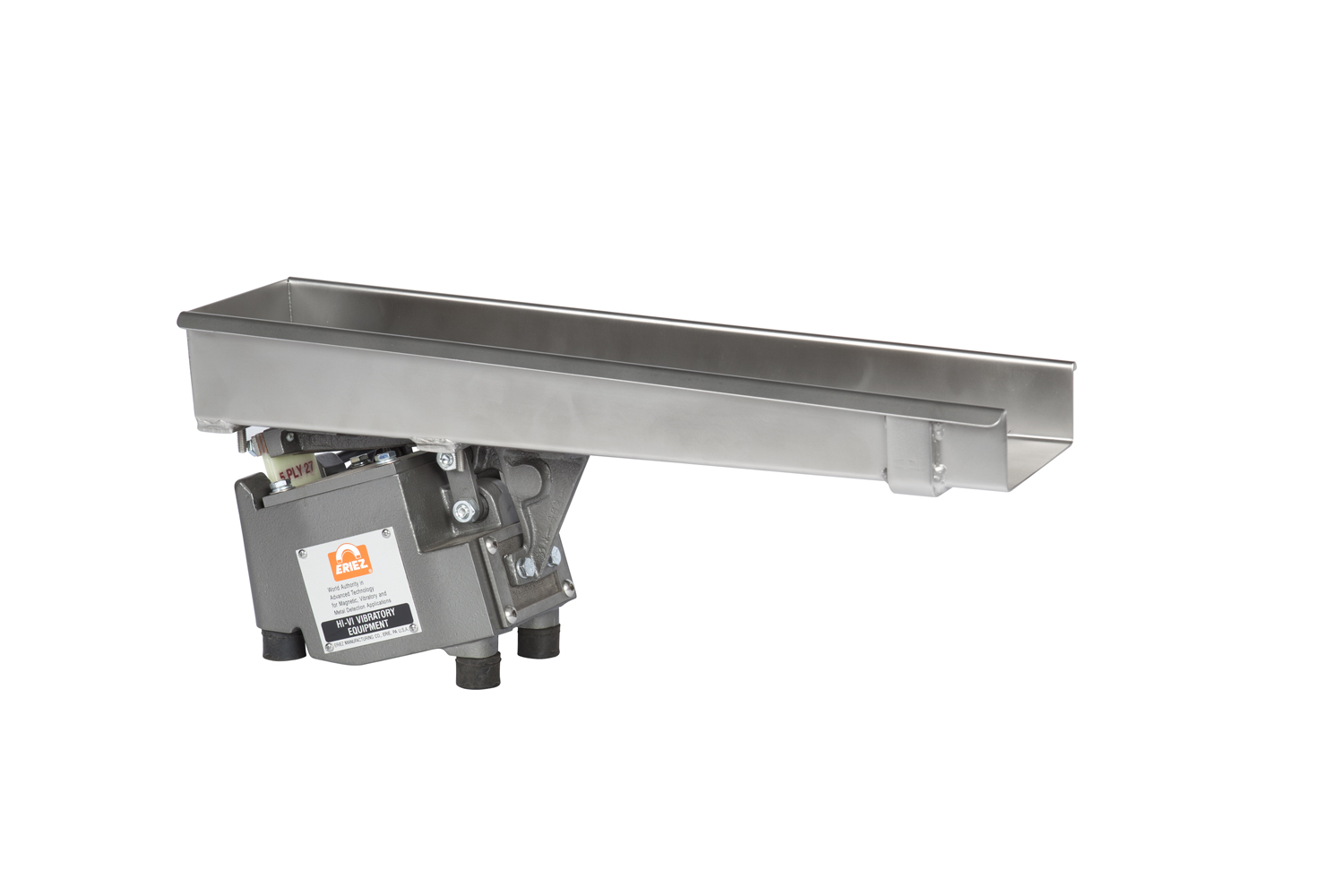

Model HS Feeders
Eriez AC operated Hi-Speed Feeders have been designed for exceptionally high speed feeding of light, bulky materials. They provide greater economy and efficiency in feeding, filling, etc., and are ideal for use in conjunction with many weigh scale and packaging machines.
These feeders operate at speeds up to 75% greater than standard models; however, they do follow many of the basic tried and proven mechanical design and construction features of other Hi–Vi Feeders.

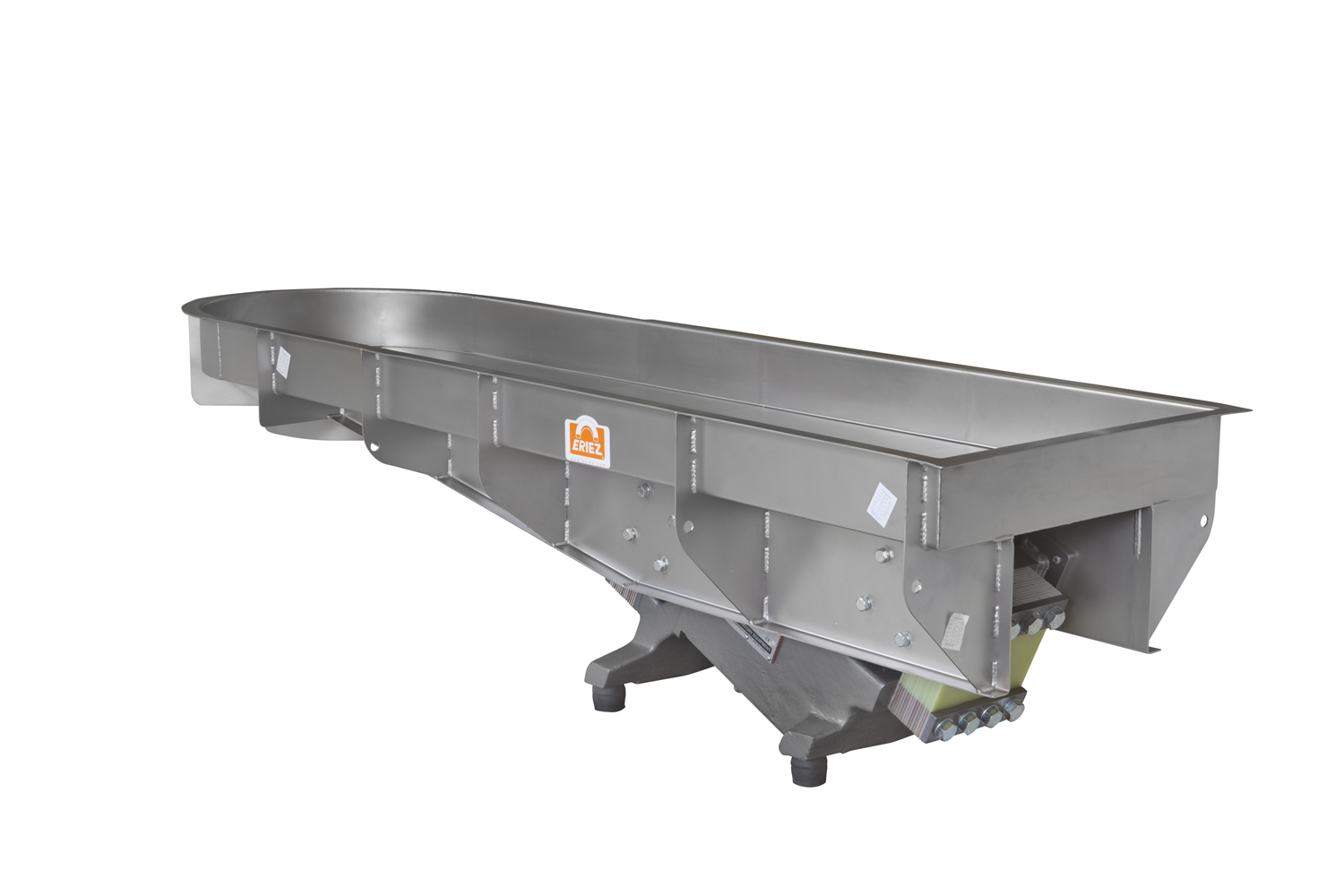

Model HD Feeders
“High Deflection” Vibratory Feeders combine the higher deflection 3/16- inch (4.8 mm) and lower frequency (30 cps) advantages of a mechanical feeder with the trouble–free service of an electromagnetic feeder. The Model HD is designed to handle powders and leafy products that normally could not be fed successfully in an electromagnetic feeder. Feed rates of up to 80 feet per minute (24 m/min) are possible for products with a bulk density less than 10 lb/ft3 (.16 gm/cc).
